Automatic Pressure Swing Adsorption Nitrogen Air Separation Unit
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | KERONG GAS |
| Certificação: | ISO9001, CE, ASME |
| Número do modelo: | Krn |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 8 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 1000pcs por ano |
|
Informação detalhada |
|||
| Nome: | Unidade de separação de nitrogénio por ar | Pureza: | 90%~ 99,9999% |
|---|---|---|---|
| Ponto de orvalho: | -45 ℃ ou mais | Material: | Aço inoxidável ou aço carbono |
| Capacidade: | 5nm3/hr ~ 5500nm3/h | Pressão: | Ajustável |
| Destacar: | PSA nitrogen gas generator with warranty,automatic nitrogen air separation unit,pressure swing adsorption nitrogen generator |
||
Descrição de produto

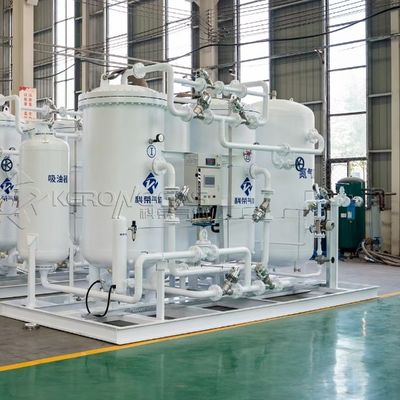

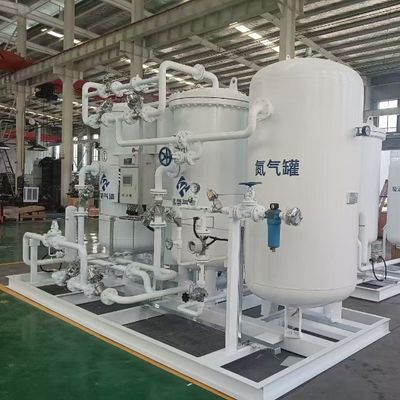

Automatic Pressure Swing Adsorption Nitrogen Air Separation Unit
Product Attributes
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Product Description
Our Automatic Pressure Swing Adsorption (PSA) Nitrogen Air Separation Unit is engineered to produce high-purity nitrogen (up to 99.99%) on-site for industrial, medical, and laboratory applications. Utilizing PSA technology, it separates nitrogen from compressed air efficiently, providing continuous, reliable supply with stable pressure and purity. The fully automated system integrates air compression, drying, filtration, and intelligent controls, enabling hands-free operation and minimal maintenance. Designed for energy efficiency, safety, and durability, it eliminates the need for cylinder or bulk nitrogen supply. Compact and robust, this nitrogen generator ensures cost-effective, high-performance nitrogen delivery for demanding environments.
Technical Parameters
Capacity: 5-5500Nm³/h
Dew point: -45 ℃ or more
Purity: 90%~99.9999%
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
Featured Functions
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are a factory with over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc.
Q: What about the warranty?
A: Beyond warranty period (For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first), supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q: What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q: Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q: Could you offer Origin Certification?
A: We can do as your request.
