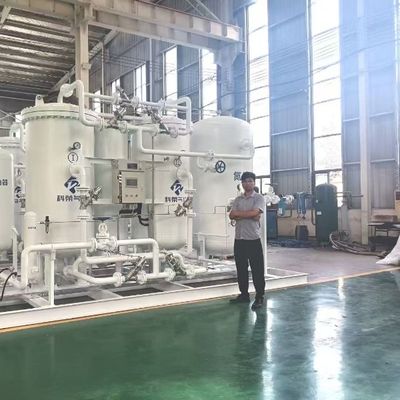

Minimal Supervision Required Nitrogen Gas Air Separation Plant For Infusion
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | KERONG GAS |
| Certificação: | ISO9001, CE, ASME |
| Número do modelo: | Krn |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 8 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 1000pcs por ano |
|
Informação detalhada |
|||
| Nome: | Planta de separação de ar e gás nitrogênio | Pureza: | 90%~ 99,9999% |
|---|---|---|---|
| Ponto de orvalho: | -45 ℃ ou mais | Material: | Aço inoxidável ou aço carbono |
| Capacidade: | 5nm3/hr ~ 5500nm3/h | Pressão: | Ajustável |
| Destacar: | PSA nitrogen gas generator for infusion,minimal supervision nitrogen separation plant,medical-grade nitrogen gas generator |
||
Descrição de produto
| Attribute | Value |
|---|---|
| Name | Nitrogen Gas Air Separation Plant |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our Nitrogen Gas Air Separation Plant for Infusion delivers high-purity nitrogen (up to 99.99%) for pharmaceutical and chemical infusion processes, ensuring oxidation-free, contamination-free production. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to provide a continuous, reliable on-site supply. The system features fully automatic controls and intelligent monitoring, requiring minimal supervision while maintaining stable pressure and consistent purity. Skid-mounted and compact, it is easy to install and energy-efficient, reducing operational costs. This plant offers a dependable, low-maintenance nitrogen solution for large-scale infusion facilities, supporting safe and high-quality production.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
