Low Operating Cost Nitrogen Gas Air Separation Plant For Air Conditoner
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | KERONG GAS |
| Certificação: | ISO9001, CE, ASME |
| Número do modelo: | Krn |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 pc |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 8 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 1000pcs por ano |
|
Informação detalhada |
|||
| Nome: | Planta de separação de ar e gás nitrogênio | Pureza: | 90%~ 99,9999% |
|---|---|---|---|
| Ponto de orvalho: | -45 ℃ ou mais | Material: | Aço inoxidável ou aço carbono |
| Capacidade: | 5nm3/hr ~ 5500nm3/h | Pressão: | Ajustável |
| Destacar: | PSA nitrogen gas generator for air conditioner,low cost nitrogen air separation plant,industrial nitrogen generator with warranty |
||
Descrição de produto
| Attribute | Value |
|---|---|
| Name | Nitrogen Gas Air Separation Plant |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

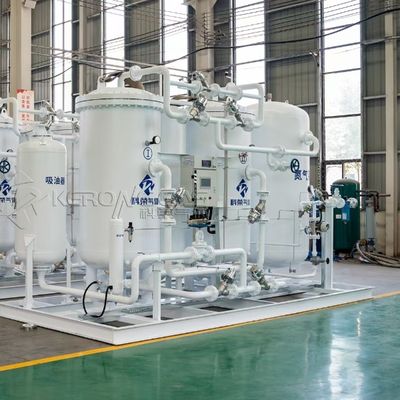

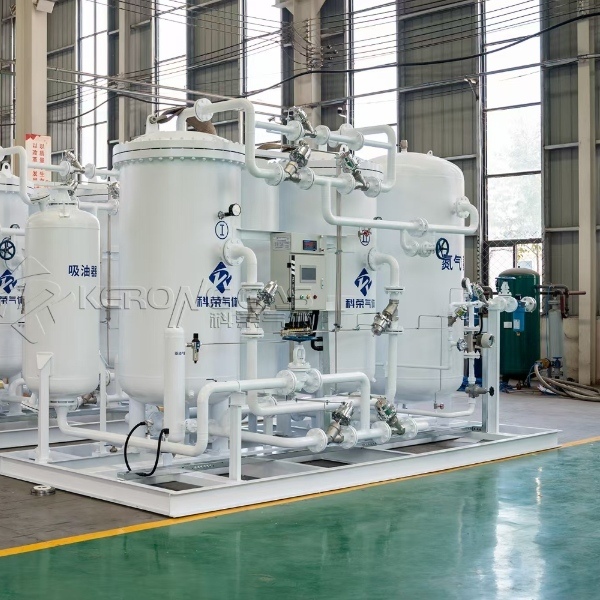

Our Nitrogen Gas Air Separation Plant for Air Conditioner is designed to provide a continuous, high-purity nitrogen supply (up to 99.99%) for HVAC and air conditioning manufacturing or maintenance processes. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air efficiently, ensuring stable purity and pressure. Engineered for low operating costs, the system is energy-efficient, compact, and skid-mounted for easy installation. With automatic operation and minimal maintenance requirements, it delivers reliable, on-site nitrogen without the need for cylinders or bulk deliveries. Ideal for industrial air conditioning facilities, it ensures safe, cost-effective, and uninterrupted nitrogen supply.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
