Ammonia Dissociation Unit With Automatic Safety Shutdown Features
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | KERONG GAS |
| Certificação: | ISO9001 |
| Número do modelo: | ANH,NHP |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 8 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, Moneygram |
| Habilidade da fonte: | 1000pcs por ano |
|
Informação detalhada |
|||
| Nome: | Unidade de dissociação de amônia | Catalisador: | Catalizador do níquel |
|---|---|---|---|
| Ponto de orvalho: | -70°C | Material: | Aço inoxidável ou aço carbono |
| Capacidade: | 5Nm3/h~250Nm3/h | Pressão: | 00,5 bar ou mais |
| Destacar: | Ammonia cracker unit with safety shutdown,Automatic ammonia dissociation unit,Industrial ammonia cracker safety features |
||
Descrição de produto

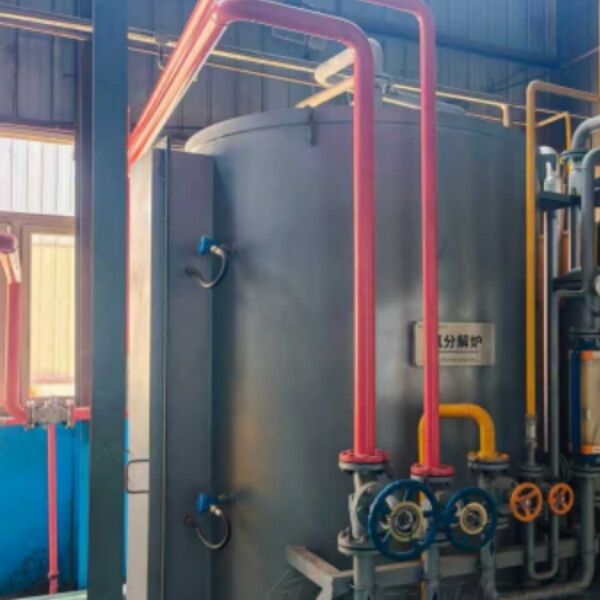

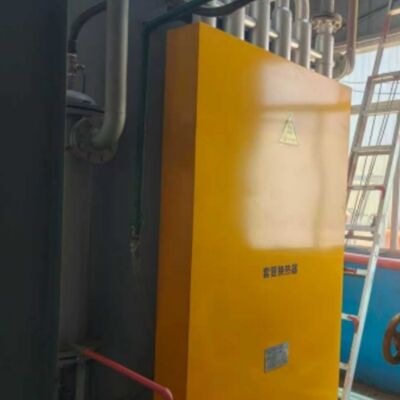

Ammonia Dissociation Unit With Automatic Safety Shutdown Features
Product description
Our Ammonia Dissociation Unit with Automatic Safety Shutdown Features is designed to produce high-quality dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Utilizing advanced thermal dissociation technology, it converts ammonia into a stable hydrogen-nitrogen protective atmosphere with consistent composition and flow. The system is equipped with automatic safety shutdown features, which immediately activate in abnormal conditions such as over-temperature, over-pressure, or system fault, ensuring maximum operational safety. Fully automatic and PLC-controlled, it provides precise temperature regulation, reliable performance, and low maintenance. Built with durable, heat-resistant materials, this unit delivers safe, efficient, and long-lasting industrial atmosphere generation.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
