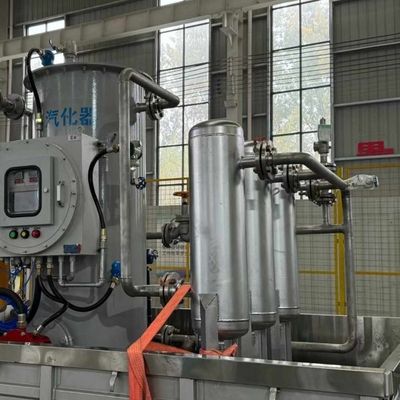

Touch-Screen Interface Ammonia Dissociation Unit With ISO9001 Certificate
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | KERONG GAS |
| Certificação: | ISO9001 |
| Número do modelo: | ANH,NHP |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 8 semanas |
| Termos de pagamento: | L/C, T/T, Western Union, Moneygram |
| Habilidade da fonte: | 1000pcs por ano |
|
Informação detalhada |
|||
| Nome: | Unidade de dissociação de amônia | Catalisador: | Catalizador do níquel |
|---|---|---|---|
| Ponto de orvalho: | -70°C | Material: | Aço inoxidável ou aço carbono |
| Capacidade: | 5Nm3/h~250Nm3/h | Pressão: | 00,5 bar ou mais |
| Destacar: | touch-screen ammonia cracker unit,ISO9001 certified ammonia dissociation unit,industrial ammonia cracker with touch interface |
||
Descrição de produto
Touch-Screen Interface Ammonia Dissociation Unit With ISO9001 Certificate
Product description
Our Touch-Screen Interface Ammonia Dissociation Unit with ISO9001 Certificate is designed to deliver reliable dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Using advanced thermal dissociation technology, it converts ammonia into a stable hydrogen-nitrogen protective atmosphere with consistent quality and flow. The intuitive touch-screen interface enables easy operation, real-time monitoring, and precise control of temperature, pressure, and system status. Certified under ISO9001 quality standards, the unit ensures dependable performance, safety, and manufacturing consistency. Fully automatic, energy-efficient, and low-maintenance, it is built with durable materials for long service life, offering a cost-effective and user-friendly industrial atmosphere generation solution.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
